Desktop · 1993ObsoleteRare · 65

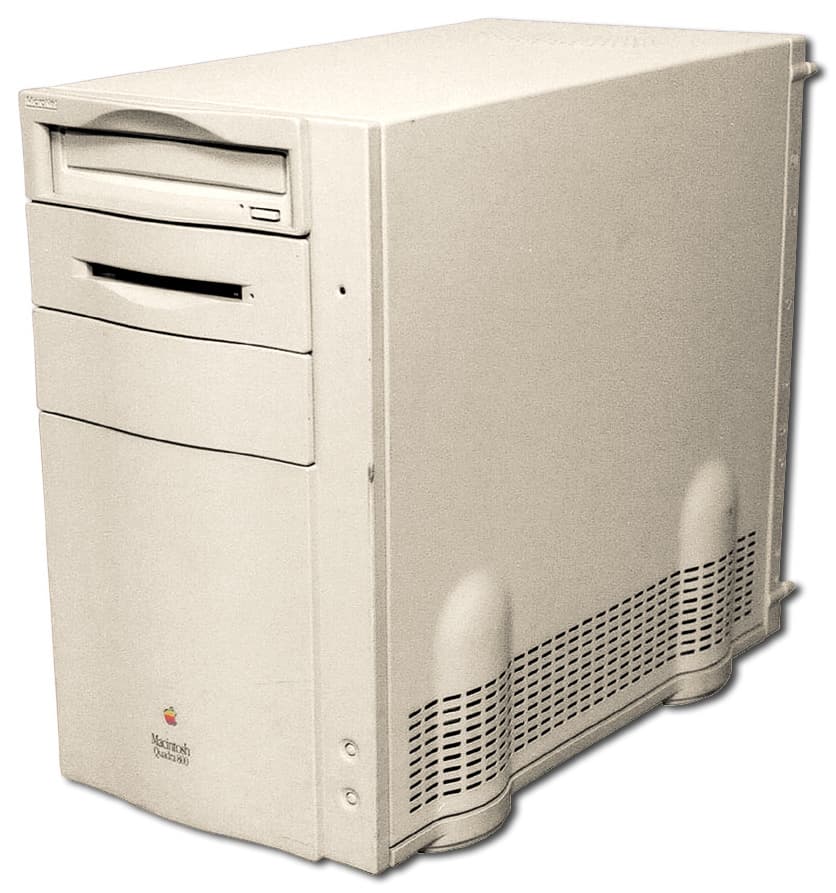

Macintosh Quadra 800
M1206 · Quadra era
0 in collections0 wanted
Have one in your collection? Track it on Orchard.
Start your collection
Identifiers
| Order number | M1206 |
Reference
| Original price | $4,679 |
| Announced | 1993-02-10 |
| Discontinued | 1994-03-14 |
| Max supported OS | Mac OS 8.1 |
| Design era | Quadra era |
Configurations
| Colors | Platinum |
| CPU | Motorola 68040 @ 33 MHz |
| Memory | 8 MB, 16 MB, 64 MB, 136 MB (max) |
| Storage | 230 MB SCSI HDD, 500 MB SCSI HDD |
| Graphics | Built-in 8-bit video (up to 24-bit w/ VRAM), NuBus video card |
| Operating system | System 7.1, System 7.1.1, System 7.1.2, System 7.5, System 7.5.1, System 7.5.2, System 7.5.3, System 7.5.5, Mac OS 7.6, Mac OS 7.6.1, Mac OS 8.0, Mac OS 8.1 |
| Removable media | 1.4 MB floppy (FDHD), CD-ROM |
Physical
| Ports & connectivity | ADB (2) · DB-25 SCSI · 2× RS-422 Mini-DIN-8 serial · 3.5mm audio in · 3.5mm audio out · AAUI Ethernet · 3× NuBus slots · PDS |
| Dimensions (W×H×D) | 368 × 368 × 216 mm |
| Weight | 11.3 kg |
Known quirks
- Mini-tower form factor — ancestor of later Power Mac G3 cases
- Runs Mac OS 8.1 — last 68040 flagship, capable of most 1990s software
- PRAM battery leak and logic-board cap aging issues
- PSU and fan are loud and need service after decades
