Desktop · 1991ObsoleteUncommon · 53

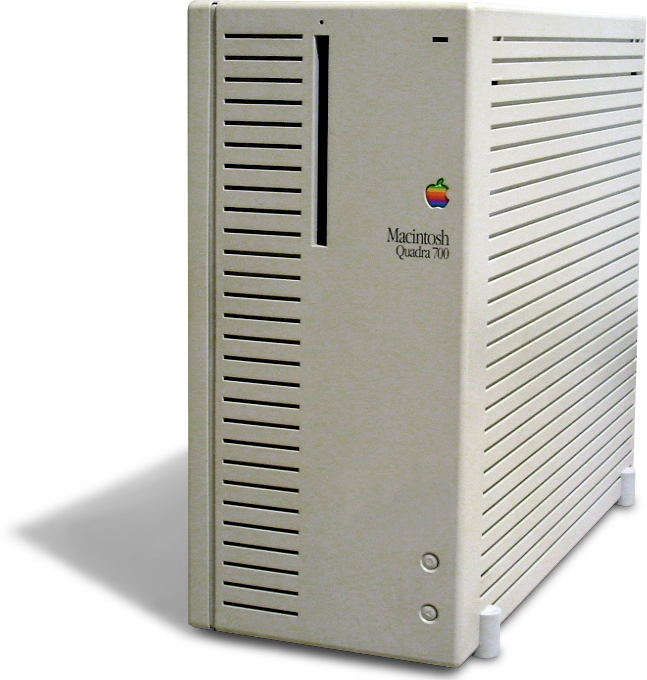

Macintosh Quadra 700
M5920 · Quadra era
2 in collections1 wanted
Have one in your collection? Track it on Orchard.
Start your collection
Identifiers
| Order number | M5920 |
Reference
| Announced | 1991-10-21 |
| Discontinued | 1993-03-15 |
| Max supported OS | Mac OS 8.1 |
| Design era | Quadra era |
Configurations
| Colors | Platinum |
| CPU | Motorola 68040 @ 25 MHz |
| Memory | 4 MB, 8 MB, 20 MB, 68 MB (max) |
| Storage | 80 MB SCSI HDD, 160 MB SCSI HDD, 230 MB SCSI HDD |
| Graphics | Built-in 8-bit video (up to 24-bit w/ VRAM), Apple 8•24 GC NuBus card |
| Operating system | System 7.0, System 7.0.1, System 7.1, System 7.1.1, System 7.1.2, System 7.5, System 7.5.1, System 7.5.2, System 7.5.3, System 7.5.5, Mac OS 7.6, Mac OS 7.6.1, Mac OS 8.0, Mac OS 8.1 |
| Removable media | 1.4 MB floppy (FDHD) |
Physical
| Ports & connectivity | ADB (2) · DB-25 SCSI · 2× RS-422 Mini-DIN-8 serial · 3.5mm audio in · 3.5mm audio out · AAUI Ethernet · 2× NuBus slots · PDS |
| Dimensions (W×H×D) | 298 × 140 × 357 mm |
| Weight | 6.4 kg |
Known quirks
- First Mac with built-in Ethernet (AAUI) — needs transceiver for 10BASE-T
- Case designed for vertical orientation — a "towered" IIci look
- PRAM battery leak typical of this era
- Only 2 NuBus slots vs. 3 on IIci — trade-off for integration
