All-in-One · 1987ObsoleteRare · 70

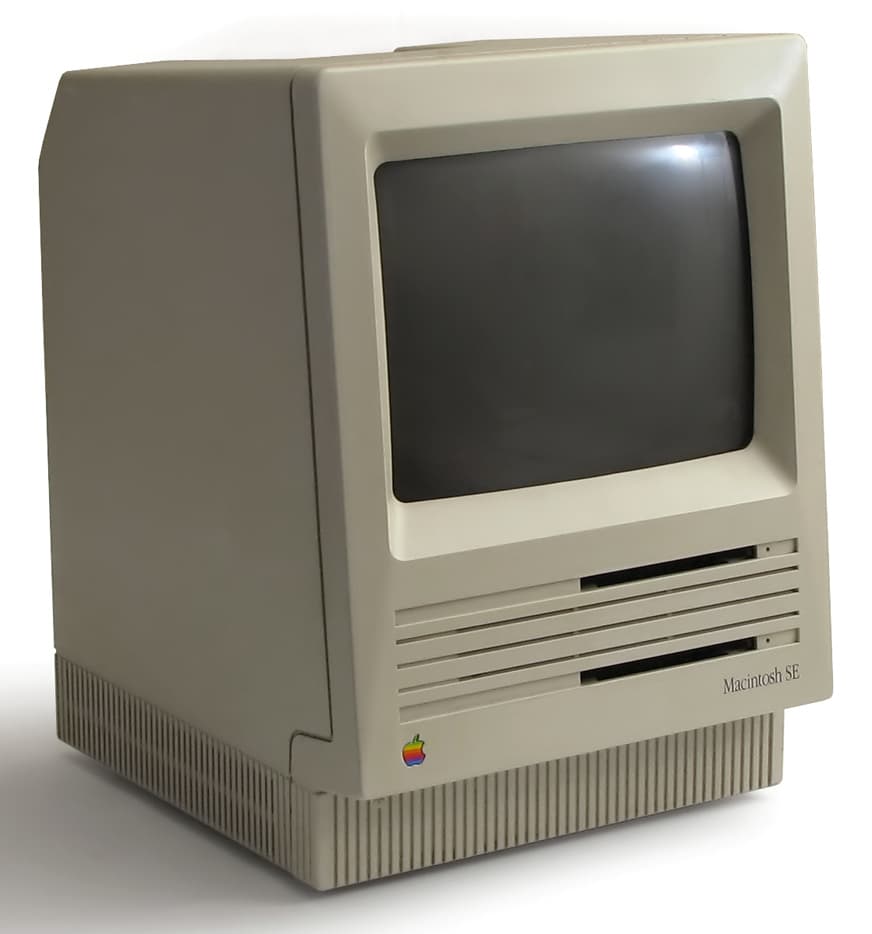

Macintosh SE
M5010/M5011 · Platinum
0 in collections0 wanted
Have one in your collection? Track it on Orchard.
Start your collection
Identifiers
| Order number | M5010/M5011 |
Reference
| Original price | $2,900 – $3,900 |
| Announced | 1987-03-02 |
| Discontinued | 1990-10-15 |
| Max supported OS | System 7.5.5 |
| Design era | Platinum |
Configurations
| Colors | Platinum |
| CPU | Motorola 68000 @ 7.83 MHz |
| Memory | 1 MB, 2 MB, 4 MB |
| Storage | 20 MB SCSI HDD, 40 MB SCSI HDD, 800 KB floppy, 1.44 MB SuperDrive, BlueSCSI, SCSI2SD |
| Graphics | Built-in framebuffer (1-bit) |
| Display | 9″ monochrome CRT (built-in, 512×342) |
| Operating system | System 4.0, System 4.1, System 4.2, System 4.3, System 5.0, System 5.1, System 6.0, System 6.0.1, System 6.0.2, System 6.0.3, System 6.0.4, System 6.0.5, System 6.0.7, System 6.0.8, System 7.0, System 7.0.1, System 7.1, System 7.1.1, System 7.1.2, System 7.5, System 7.5.1, System 7.5.2, System 7.5.3, System 7.5.5 |
| Removable media | 800K floppy, 1.4 MB floppy (FDHD) |
Physical
| Ports & connectivity | ADB · DB-25 SCSI · 2× RS-422 Mini-DIN-8 serial · 3.5mm audio out |
| Dimensions (W×H×D) | 245 × 345 × 277 mm |
| Weight | 7.7 kg |
Known quirks
- PRAM battery leak can destroy logic board — check and replace before powering on
- Surface-mount caps on logic board leak electrolyte and need recapping
- Small internal fan is loud and bearings wear over time
- Single expansion slot (SE-PDS) — incompatible with later SE/30 cards
