All-in-One · 1995ObsoleteRare · 65

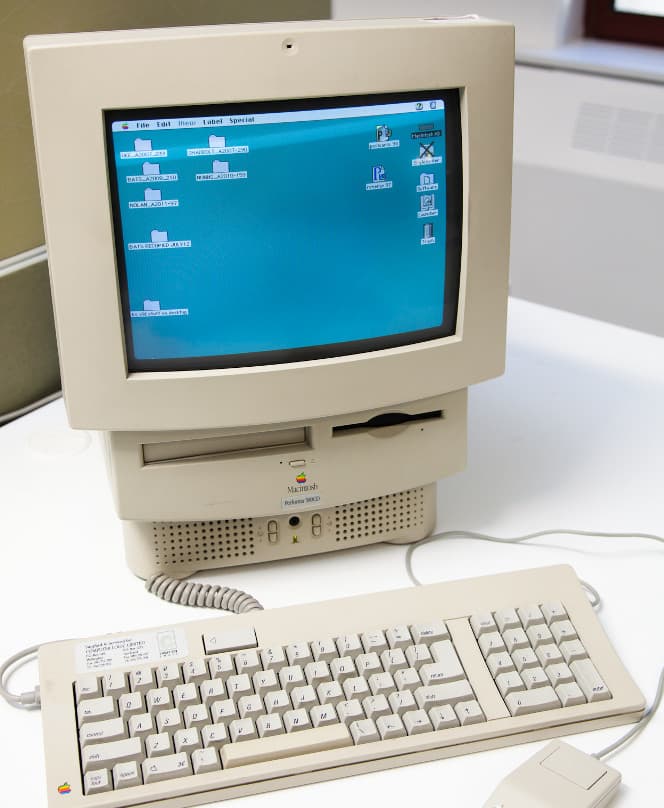

Macintosh LC 580
M4059 · Performa all-in-one
0 in collections0 wanted
Have one in your collection? Track it on Orchard.
Start your collection
Identifiers
| Order number | M4059 |
Reference
| Original price | $1,300 |
| Announced | 1995-04-03 |
| Discontinued | Still shipping |
| Max supported OS | Mac OS 8.1 |
| Design era | Performa all-in-one |
Configurations
| Colors | Platinum |
| CPU | Motorola 68LC040 @ 33 MHz |
| Memory | 8 MB, 52 MB (max) |
| Storage | 250 MB IDE HDD, 500 MB IDE HDD |
| Graphics | Built-in video (512 KB VRAM, expandable to 1 MB) |
| Display | 14″ color CRT (built-in, 640×480; shadow-mask RGB, not Trinitron) |
| Operating system | System 7.5.1, System 7.5.3, Mac OS 8.1 |
| Removable media | 2× CD-ROM, 1.4 MB floppy |
Physical
| Ports & connectivity | ADB (2) · DB-25 SCSI · 2× RS-422 Mini-DIN-8 serial · 3.5mm audio in/out · Comm slot · LC PDS |
| Dimensions (W×H×D) | 343 × 455 × 419 mm |
| Weight | 18.4 kg |
Known quirks
- First Mac all-in-one to use a cheaper IDE (ATA) internal drive instead of SCSI
- The IDE controller drives only a single device and tops out at PIO Mode 3 (~11 MB/s)
- Drops the Sony Trinitron for a shadow-mask RGB CRT to cut cost
- 8 MB RAM standard, max 52 MB across two 72-pin SIMM slots — more headroom than the 575
- Consumer version sold as the Performa 580CD (Canada, Asia, and Australia only)
