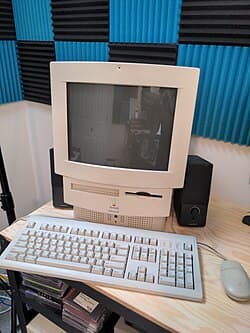

Macintosh LC 550
M2147 · Performa all-in-one
0 in collections0 wanted
Have one in your collection? Track it on Orchard.
Start your collection
Identifiers
| Order number | M2147 |
Reference
| Announced | 1994-02-02 |
| Discontinued | 1995-03-23 |
| Max supported OS | Mac OS 7.6.1 |
| Design era | Performa all-in-one |
Configurations
| Colors | Platinum |
| CPU | Motorola 68030 @ 33 MHz |
| Memory | 5 MB, 36 MB (max) |
| Storage | 160 MB SCSI HDD, BlueSCSI |
| Graphics | Built-in video (512 KB VRAM, expandable to 1 MB) |
| Display | 14″ Sony Trinitron color CRT (built-in, 640×480) |
| Operating system | System 7.1, System 7.5, Mac OS 7.6.1 |
| Removable media | 2× CD-ROM, 1.4 MB floppy |
Physical
| Ports & connectivity | ADB (2) · DB-25 SCSI · 2× RS-422 Mini-DIN-8 serial · 3.5mm audio in/out · Comm slot · LC PDS |
| Dimensions (W×H×D) | 343 × 455 × 419 mm |
| Weight | 18.4 kg |
Known quirks
- Speed-bumped LC 520 — same 14″ Trinitron AIO chassis with the 68030 clocked up to 33 MHz
- Sold to consumers as the Performa 550, which actually launched first (Oct 1993) ahead of the LC 550
- 5 MB RAM standard, only 36 MB max — same single-SIMM limit as the 520
- Still a 68030, so it tops out at Mac OS 7.6.1
- PRAM battery leak and aging analog-board caps are the usual restoration items
