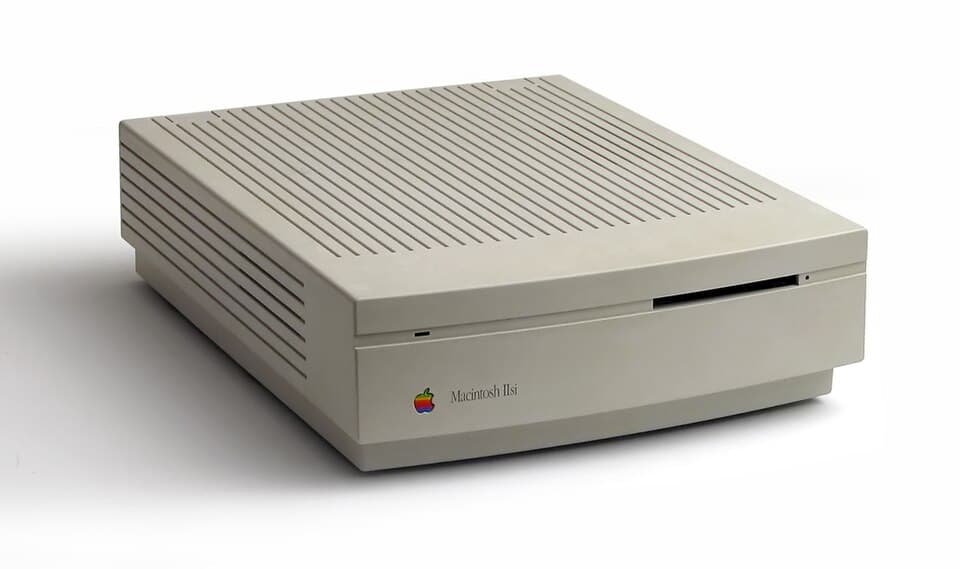

Macintosh IIsi
M0360 · Platinum
0 in collections0 wanted
Have one in your collection? Track it on Orchard.
Start your collection
Identifiers
| Order number | M0360 |
Reference
| Original price | $3,769 |
| Announced | 1990-10-15 |
| Discontinued | 1993-03-15 |
| Max supported OS | System 7.5.5 |
| Design era | Platinum |
Configurations
| Colors | Platinum |
| CPU | Motorola 68030 @ 20 MHz |
| Memory | 1 MB, 2 MB, 4 MB, 8 MB, 17 MB, 65 MB (max) |
| Storage | 40 MB SCSI HDD, 80 MB SCSI HDD, BlueSCSI |
| Graphics | Built-in 8-bit video, NuBus adapter card (030 Direct Slot) |
| Operating system | System 6.0.7, System 7.x, System 7.5.5 |
| Removable media | 1.4 MB floppy (FDHD) |
Physical
| Ports & connectivity | ADB · DB-25 SCSI · 2× RS-422 Mini-DIN-8 serial · 3.5mm audio in · 3.5mm audio out · Mic · 030 PDS (with NuBus adapter) |
| Dimensions (W×H×D) | 305 × 102 × 381 mm |
| Weight | 4.1 kg |
Known quirks
- Pizza-box case — low-profile but cramped for service
- NuBus requires adapter card on the single PDS slot
- Soldered 1 MB + 1 SIMM slot = 17 MB RAM cap
- Surface-mount caps on logic board leak — recap recommended
- No internal fan — passive cooling gets hot under load
