Desktop · 1990ObsoleteRare · 65

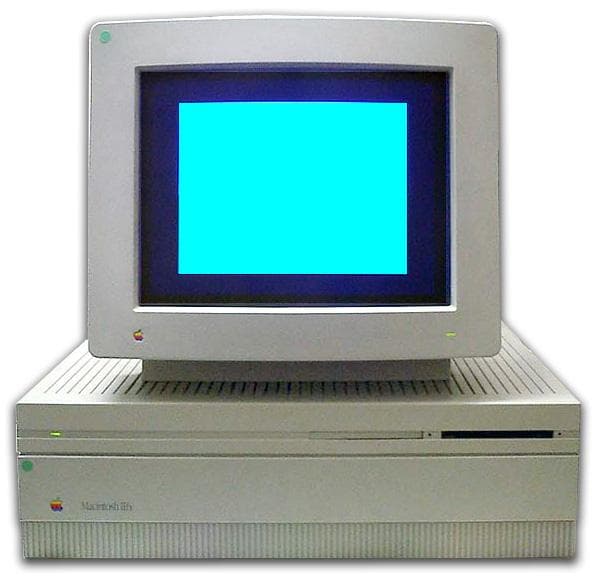

Macintosh IIfx
M5525 · Platinum
0 owned0 wanted
Have one in your collection? Track it on Orchard.
Start your collection
Identifiers
| Order number | M5525 |
Reference
| Original price | $9,900 |
| Announced | 1990-03-19 |
| Discontinued | 1992-04-15 |
| Max supported OS | System 7.6.1 |
| Design era | Platinum |
Configurations
| Colors | Platinum |
| CPU | Motorola 68030 @ 40 MHz + 68882 FPU |
| Memory | 4 MB, 8 MB, 32 MB, 128 MB (max) |
| Storage | 80 MB SCSI HDD, 160 MB SCSI HDD, BlueSCSI |
| Graphics | Apple 8•24 NuBus card, Apple 8•24 GC, RasterOps NuBus card |
| Operating system | System 6.0, System 6.0.1, System 6.0.2, System 6.0.3, System 6.0.4, System 6.0.5, System 6.0.7, System 6.0.8, System 7.0, System 7.0.1, System 7.1, System 7.1.1, System 7.1.2, System 7.5, System 7.5.1, System 7.5.2, System 7.5.3, System 7.5.5, Mac OS 7.6, Mac OS 7.6.1, A/UX 1.0, A/UX 1.1, A/UX 2.0, A/UX 2.0.1, A/UX 3.0, A/UX 3.0.1, A/UX 3.0.2, A/UX 3.1, A/UX 3.1.1 |
| Removable media | 1.4 MB floppy (FDHD) |
Physical
| Ports & connectivity | ADB (2) · DB-25 SCSI · 2× RS-422 Mini-DIN-8 serial · 3.5mm audio out · 6× NuBus slots · PDS |
| Dimensions (W×H×D) | 476 × 140 × 371 mm |
| Weight | 11.6 kg |
Known quirks
- "Wicked Fast" but fiendishly expensive — $9,900 at launch
- Requires special fast-page-mode 64-pin SIMMs — unique to IIfx, hard to find
- Dedicated I/O processors (IOPs) make it incompatible with some drivers
- PRAM battery uses non-standard 7.2V lithium — easy to install wrong battery
- SCSI terminator must be internal — requires special terminator block
