All-in-One · 1984ObsoleteUncommon · 62

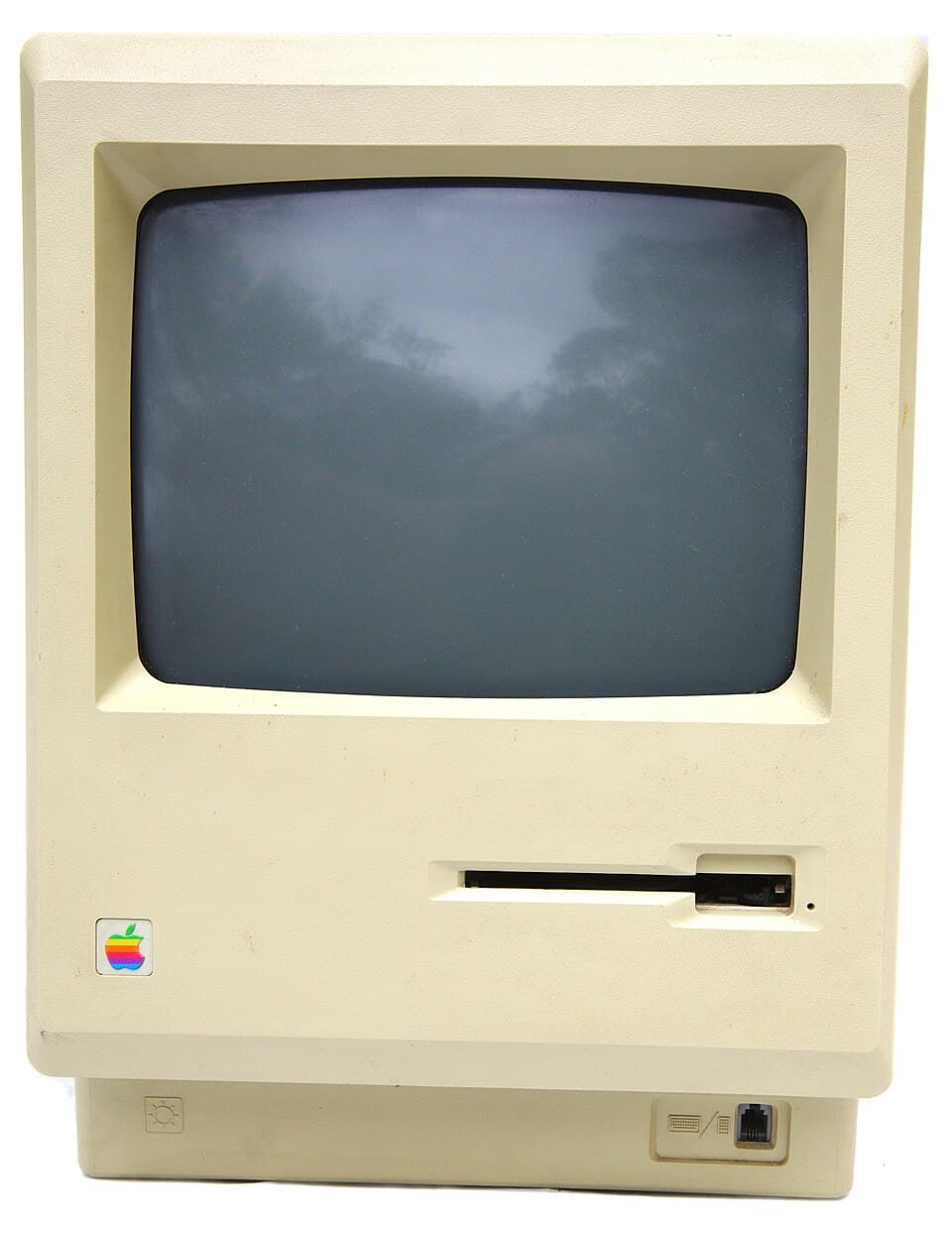

Macintosh 512K
M0001W · Beige Compact
1 in collections0 wanted
Have one in your collection? Track it on Orchard.
Start your collection
Identifiers
| Order number | M0001W |
Reference
| Original price | $2,795 |
| Announced | 1984-09-10 |
| Discontinued | 1986-04-14 |
| Max supported OS | System 6.0.8 |
| Design era | Beige Compact |
Configurations
| Colors | Beige |
| CPU | Motorola 68000 @ 7.83 MHz |
| Memory | 512 KB |
| Storage | 400 KB floppy (internal) |
| Graphics | Built-in framebuffer (1-bit) |
| Display | 9″ monochrome CRT (built-in, 512×342) |
| Operating system | System 2.0, System 2.1, System 3.0, System 3.1, System 3.2, System 3.3, System 4.0, System 4.1, System 4.2, System 4.3, System 5.0, System 5.1, System 6.0, System 6.0.1, System 6.0.2, System 6.0.3, System 6.0.4, System 6.0.5, System 6.0.7, System 6.0.8 |
| Removable media | 400K floppy |
Physical
| Ports & connectivity | DB-19 external floppy · 2× RS-422 Mini-DIN-8 serial · DE-9 mouse · 3.5mm audio out |
| Dimensions (W×H×D) | 245 × 345 × 277 mm |
| Weight | 7.5 kg |
Known quirks
- PRAM battery leak can destroy logic board — remove or replace before use
- No internal SCSI — external storage requires floppy or slow serial port
- Flyback transformer and analog-board cap issues common with age
- RAM is socketed but limited to 512 KB without third-party mods
