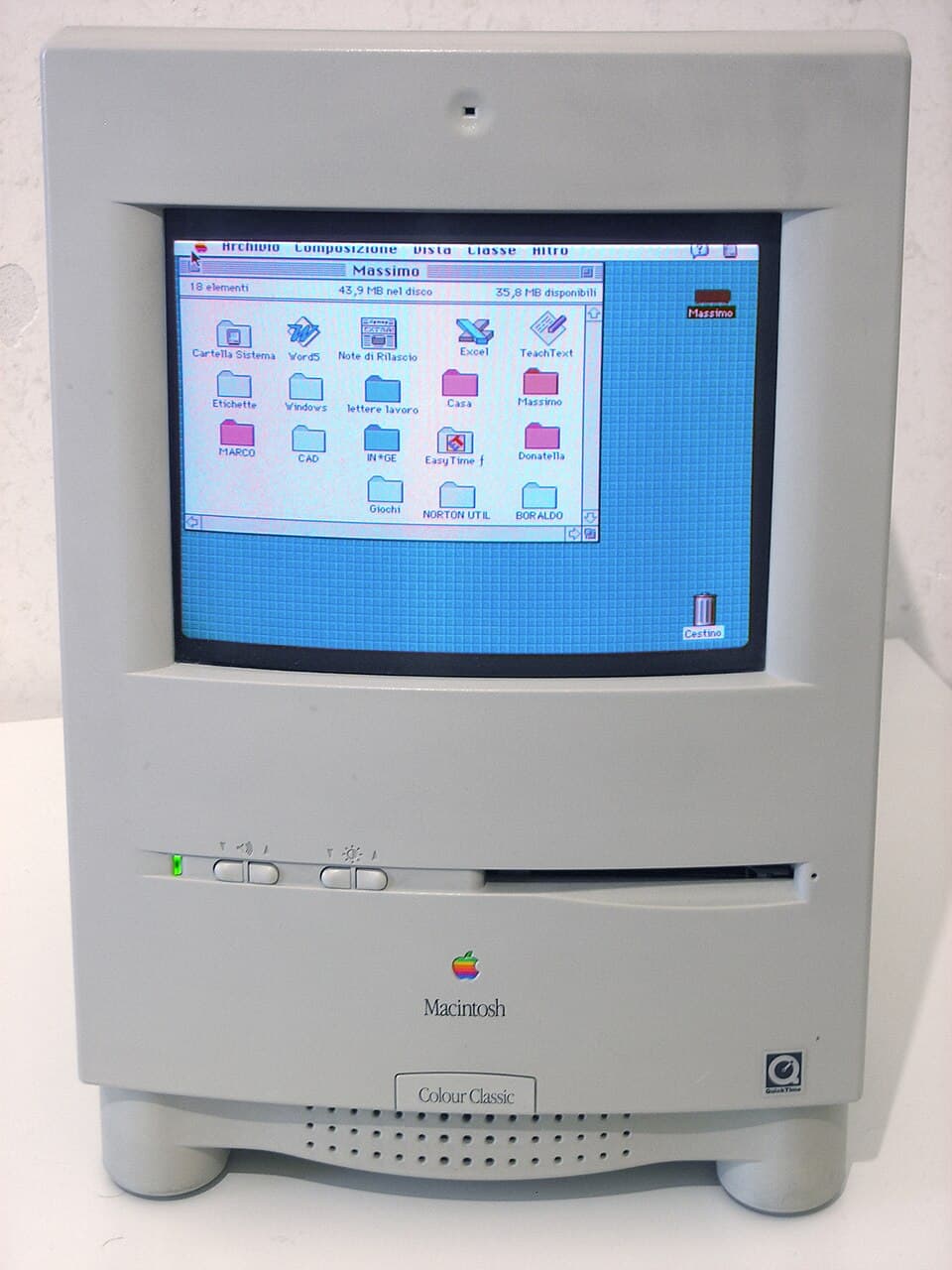

Macintosh Color Classic
M1600 · Platinum
1 in collections2 wanted
Have one in your collection? Track it on Orchard.
Start your collection
Identifiers
| Order number | M1600 |
Reference
| Original price | $1,389 |
| Announced | 1993-02-10 |
| Discontinued | 1995-05-01 |
| Max supported OS | System 7.6.1 |
| Design era | Platinum |
Configurations
| Colors | Platinum |
| CPU | Motorola 68030 @ 16 MHz |
| Memory | 4 MB, 8 MB, 10 MB |
| Storage | 40 MB SCSI HDD, 80 MB SCSI HDD, BlueSCSI |
| Graphics | Built-in 8-bit color video |
| Display | 10″ Trinitron color CRT (built-in, 512×384) |
| Operating system | System 7.1, System 7.1.1, System 7.1.2, System 7.5, System 7.5.1, System 7.5.2, System 7.5.3, System 7.5.5 |
| Removable media | 1.4 MB floppy (FDHD) |
Physical
| Ports & connectivity | ADB (2) · DB-25 SCSI · 2× RS-422 Mini-DIN-8 serial · 3.5mm audio in · 3.5mm audio out |
| Dimensions (W×H×D) | 240 × 371 × 318 mm |
| Weight | 10.2 kg |
Known quirks
- Caps on logic and analog boards leak — recap required for reliable operation
- Low 512×384 resolution and 16 MHz bus — Mystic/Takky upgrades popular in collector scene
- LC-style PDS slot takes only specific cards — narrower than SE/30 PDS
- PRAM battery leak common
